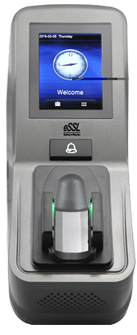

eSSL V350
eSSL V350 – Finger Vein Biometric Device for Multi-Modal Authentication
eSSL V350 is an advanced multi-modal biometric device supporting finger vein, fingerprint, password, and optional card authentication. Finger vein technology reads the unique vascular pattern inside the finger, making it highly resistant to spoofing and ideal for high-security environments.
Running on ZMM220 platform with a 1.2 GHz CPU, the V350 features a 2.8-inch capacitive touchscreen, full access control functionality, and Wiegand input/output for third-party panel integration—making it a premium eSSL biometric attendance and access control solution.
Key Features:
- Finger vein + fingerprint multi-modal authentication
- 1,000 vein templates and 1,000 fingerprint templates
- Spoofing-resistant: reads internal vascular pattern
- 2.8-inch capacitive touchscreen interface
- TCP/IP and RS485 communication
- Wiegand input & output for access panel integration
- EM and optional Mifare card reader
- PULL SDK available for custom integration
- Wide temperature range: -10°C to 45°C
Technical Specifications:
| Core Board | ZMM220 |
| CPU | 1.2 GHz |
| Communication | TCP/IP, RS485 |
| Vein Capacity | 1,000 |
| Fingerprint Capacity | 1,000 |
| RF Card | EM, Mifare (Optional) |
| Authentication | Finger vein, fingerprint, password, card (optional) |
| Auxiliary Terminal | 1 Aux. Input |
| Wiegand | Input and Output |
| Display | 2.8-inch Capacitive Screen |
| Operating Voltage | DC 12V, 3A |
| Operating Temperature | -10°C – 45°C |
| Dimensions (L×W×T) | 232 × 91 × 117 mm |
| SDK | PULL SDK (new firmware) |
Frequently Asked Questions – eSSL V350
What is finger vein biometric technology?
Finger vein technology uses near-infrared light to scan the unique pattern of blood vessels inside the finger. It is extremely difficult to spoof or forge, making it ideal for high-security environments like server rooms, banks, and research labs.
Is eSSL V350 suitable for high-security offices?
Yes. The V350's finger vein technology is spoofing-resistant and provides multi-modal authentication (vein + fingerprint + card + PIN), making it suitable for high-security access control environments.
What is the operating temperature of eSSL V350?
The V350 operates from -10°C to 45°C, making it more resilient to cold environments than standard optical fingerprint sensors.
Does V350 support Wiegand integration?
Yes. The V350 has both Wiegand input and output, enabling integration with any third-party access control panel.
Where can I buy eSSL V350 in Pune?
Contact Cybernetics Software in Pune at 09028006464. We are authorised eSSL dealers providing the full range of eSSL biometric devices including the V350.
