eSSL INBIO460

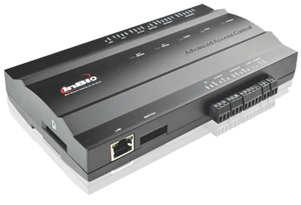

eSSL INBIO460 – 4-Door Biometric Access Control Panel
eSSL INBIO460 is a powerful 4-door access control panel from ESSL designed for enterprise-grade security management. As part of ESSL's essl access control system range, the INBIO460 manages up to 4 doors simultaneously with 3,000 fingerprint templates, 30,000 card records, and 1,00,000 event logs.
The INBIO460 features 256 time zones, 256 access levels, anti-passback, interlock, linkage, and multi-card opening functions. Real-time monitoring via web browser, video server integration, fire alarm, and smoke detector linkage make it a comprehensive enterprise eSSL access control system for Pune corporate offices and industrial complexes.
Key Features:
- Manages 4 doors simultaneously from a single panel
- 256 time zones and 256 access levels for granular control
- Anti-passback, interlock, linkage, and multi-card opening
- 4 Wiegand reader ports (26/34-bit) supporting RS485 fingerprint readers
- Real-time monitoring via web browser (TCP/IP)
- 4 auxiliary inputs: infrared detectors, fire alarm, smoke detectors
- 4 auxiliary outputs: alarm, camera, doorbell
- Video server integration for camera-linked access control
- 3,000 FP, 30,000 card capacity, 1,00,000 event buffer
Technical Specifications:
| CPU | 32-bit MIPS |
| RAM | 32 MB |
| Flash Memory | 128 MB |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 30,000 |
| Event Buffer | 1,00,000 |
| Power | DC 9.6V–14.4V, Max 1A |
| Wiegand Reader Ports | 4 ea (26/34-bit Wiegand, 4/8-bit PIN RS485) |
| Reader Port | 1 extended RS485 port |
| Communication | RS485, TCP/IP |
| Baud Rate | 38,400 bps (recommended) |
| Input Port | 8 ea: exit buttons ×4, door sensors ×4 |
| Supports | F12 (RS485) Fingerprint Reader |
Frequently Asked Questions – eSSL INBIO460
How many doors can eSSL INBIO460 control?
The INBIO460 can control up to 4 doors simultaneously from a single panel, making it cost-effective for managing multiple entry points in an office or industrial complex.
Does INBIO460 support anti-passback?
Yes. The INBIO460 supports anti-passback to prevent credential sharing between entry points, enhancing security in controlled-access zones.
Can INBIO460 be monitored remotely?
Yes. Real-time monitoring is available via a web browser over TCP/IP, allowing security managers to monitor all four doors from any networked computer.
What sensors can be connected to INBIO460?
The INBIO460's 4 auxiliary inputs can be connected to infrared body detectors, fire alarms, smoke detectors, and emergency switches for linkage-based automated responses.
Does INBIO460 integrate with cameras?
Yes. The INBIO460 supports video server integration, allowing camera linkage for visual verification of access events in real time.
