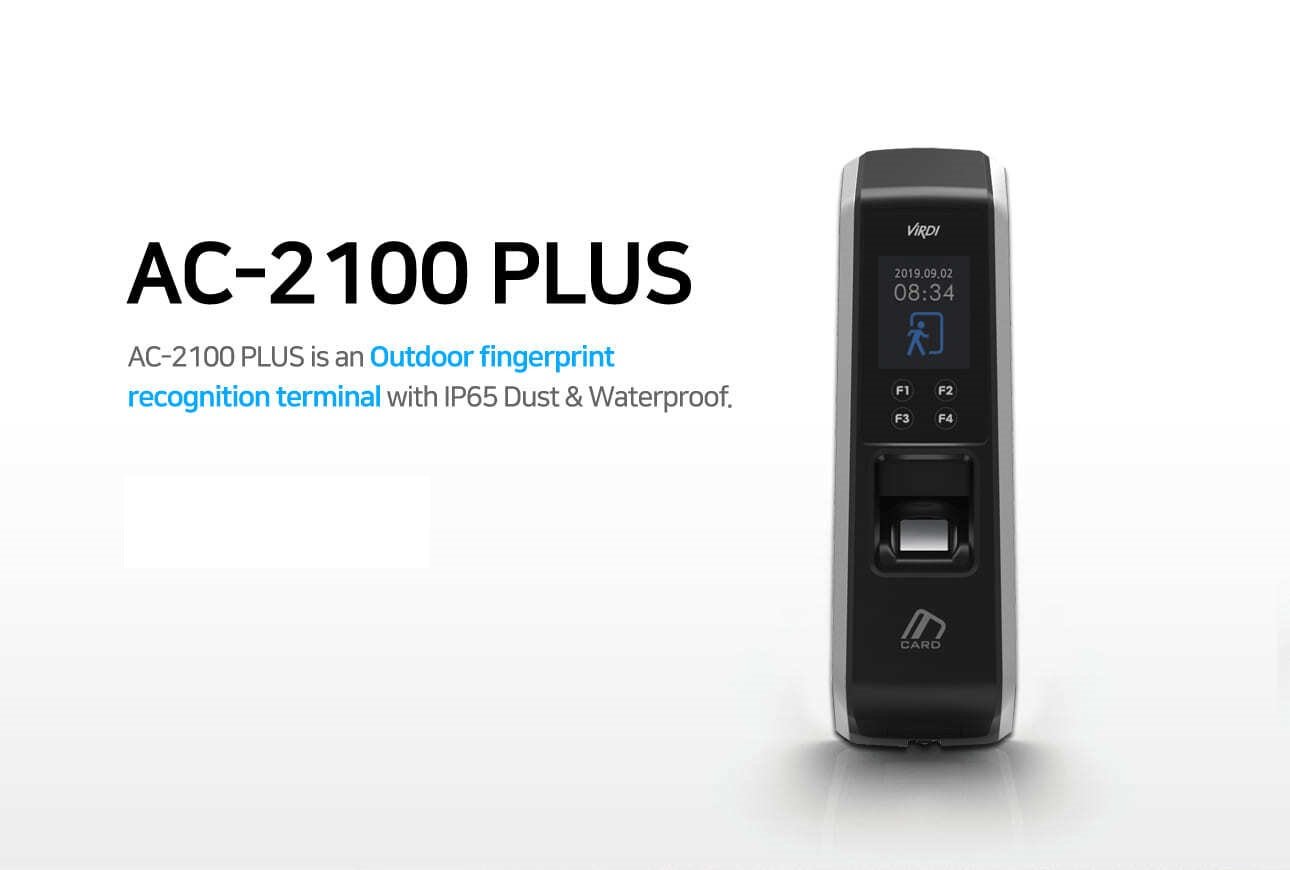

VIRDI AC-2100 Plus – Rugged Biometric Solution
The VIRDI AC-2100 Plus is a high-performance outdoor fingerprint recognition terminal designed for access control and time attendance applications in demanding environments. With an IP65 weatherproof rating, patented live fake finger detection, and flexible connectivity options, this terminal delivers enterprise-grade security and reliability.
Manufactured by Union Community Co. Ltd., a publicly listed South Korean biometric technology leader, the AC-2100 Plus combines a 400MHz ARM processor, 1.77" color LCD touch screen, and up to 10,000 user capacity. It is specifically designed for outdoor installation, providing robust performance in temperatures ranging from -20°C to 60°C.
Where Can You Use AC-2100 Plus?
🏭 Factories & Warehouses
IP65-rated dust and water resistance makes it ideal for harsh industrial environments with dust, moisture, and temperature variations.
🚪 Outdoor Access Points
Gate entry, perimeter security, and outdoor building entrances where weather exposure is a concern.
🏢 Corporate Offices
Employee time attendance and secure access to server rooms, research labs, and restricted areas.
🏫 Educational Campuses
Hostel entry, library access, and staff attendance for schools and colleges.
🏘️ Gated Communities
Resident and visitor access control at main gates and clubhouse entries.
🏥 Healthcare Facilities
Secure access to pharmacies, operation theaters, and restricted zones in hospitals.
Key Features of VIRDI AC-2100 Plus
Patented Live Fake Finger Detection
Detects fake fingerprints made from gelatin, silicon, rubber, paper, and film. Prevents spoofing attacks and ensures only genuine authentication.
IP65 Weatherproof Rating
Dust-tight and protected against low-pressure water jets. Designed for outdoor installation in rain, dust, and extreme temperatures (-20°C to 60°C).
Multiple Authentication Methods
Supports fingerprint, RFID card (125kHz EM or 13.56MHz Mifare), PIN, and Bluetooth Mobile Key via V-CARD app — choose single or dual-factor authentication.
Bluetooth Mobile Key Support
Integrated Bluetooth Low Energy (BLE) allows users to unlock doors using smartphones, eliminating physical cards or keys.
Fast Authentication Speed
1:1 verification in under 0.2 seconds, 1:N identification (1,000 users) in under 1 second. FRR 0.1% / FAR 0.0001%.
1.77" Color LCD Touch Screen
User-friendly graphical interface with 4 touch-sensitive function keys for easy menu navigation and operation.
Flexible Connectivity
TCP/IP, USB, RS485 (OSDP protocol), Wiegand Input/Output, and Bluetooth — seamless integration with existing systems.
Large Storage Capacity
Up to 10,000 users (1:1 mode), 1,500 fingerprint users (1:N mode), 10,000 cards, and 100,000 transaction logs. Stores 10 fingerprints per user.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AC-2100 Plus |
| Authentication Methods | Fingerprint, RFID Card (125kHz EM / 13.56MHz Mifare), PIN, Bluetooth Mobile Key |
| Fingerprint Capacity (1:1 Mode) | 10,000 users (20,000 templates) |
| Fingerprint Capacity (1:N Mode) | 1,500 users (3,000 templates, 2 per user) |
| Card Capacity | 10,000 |
| Transaction Logs | 100,000 events |
| CPU | 400MHz ARM9 |
| Memory | 32MB NOR + 128MB NAND Flash |
| Fingerprint Sensor | 500 DPI Optical Sensor, Platen Area 14.8 x 17.9 mm |
| Authentication Speed | 1:1 <0.2 sec, 1:N (1,000) <1 sec |
| FRR / FAR | 0.1% / 0.0001% |
| Display | 1.77" Color LCD Touch Screen with Backlight |
| Keypad | 4 Touch-Sensitive Function Keys |
| Communication Interfaces | TCP/IP, USB, RS485 (OSDP), Wiegand Input/Output, Bluetooth |
| Ingress Protection | IP65 (Dust-tight, protected against water jets) |
| Operating Temperature | -20°C to 60°C |
| Power Supply | 12V DC, 400mA (4.8W) |
| Dimensions (W x H x D) | 58 x 188 x 51.6 mm |
| Optional Accessories | PoE (Power over Ethernet), Backup Battery (Li-ion 2500mAh) |
Available Variants
📇 AC-2100 Plus RF
Equipped with 125kHz EM card reader. Supports EM4100/EM4102 compatible proximity cards. Ideal for existing 125kHz card installations.
🔖 AC-2100 Plus SC
Equipped with 13.56MHz Mifare (ISO 14443 A) card reader. Supports smart card technology with enhanced security features.
Time & Attendance Management
⏱️ Built-in T&A Functionality
The AC-2100 Plus includes comprehensive time attendance features — schedule settings, attendance data recording, and report generation directly from the terminal.
📊 Attendance Modes
Configure specific function keys for Attend, Leave, Outdoor, Return, and Access modes. Automatic mode selection based on time zone reduces user input errors.
💼 Payroll Integration
Export attendance data to HRMS and payroll systems. Seamless integration with UNIS and Alpeta management suites for centralized reporting.
📅 Shift Management
Supports multiple shifts, overtime calculation, late reporting, and holiday/weekly off restrictions. Ideal for manufacturing and shift-based organizations.
Access Control Capabilities
🚪 Door Control
Built-in relay for door lock control (EM lock, bolt lock, strike lock). Supports door monitor input and REX (Request to Exit) button.
🔄 Anti-Passback
Prevents card or fingerprint reuse for entry without exit — ensures one-person-one-entry policy in high-security areas.
🔗 Wiegand Interface
Wiegand input and output for connecting to external Wiegand readers or door controllers. Expandable to multiple doors per controller.
📡 OSDP Protocol Support
RS485 interface with OSDP (Open Supervised Device Protocol) for secure, bidirectional communication with access control panels.
🚨 Emergency Lockdown/Release
Programmable auxiliary outputs for emergency unlock during fire alarms or lockdown for security breaches.
Connectivity & Software Integration
🌐 Network Connectivity
TCP/IP for connection to host server via UTP cable. Supports static IP or DHCP. Real-time data push to central server.
📱 Bluetooth Mobile Key
Integrated BLE allows users to authenticate using smartphones with V-CARD app. Distance-based authentication and virtual credential management.
🖥️ UNIS & Alpeta Software
Compatible with VIRDI's UNIS and Alpeta management suites for centralized database management, real-time monitoring, and automated reporting across multiple sites.
⚡ Power over Ethernet (PoE)
Optional PoE support simplifies installation by delivering power and data through a single Ethernet cable — reduces wiring costs.
Business Benefits
💰 Reduce Operational Costs
Eliminate manual attendance tracking and reduce payroll errors. Lower maintenance costs with rugged IP65 design.
🛡️ Enhanced Security
Patented fake finger detection prevents unauthorized access. Multi-factor authentication provides layered security.
🌦️ Year-Round Reliability
IP65 rating ensures consistent operation in rain, dust, and extreme temperatures — ideal for outdoor and industrial applications.
📈 Scalable Solution
Deploy as standalone terminal or integrate into larger enterprise access control system with multiple doors and locations.
Why Buy VIRDI AC-2100 Plus from CSPL Software?
✅ Authorized VIRDI Partner
100% genuine products with manufacturer warranty. Direct sourcing from Union Community Co. Ltd.
⚡ Best Price in India
Competitive pricing with volume discounts for bulk orders. Get the best deal for your deployment.
🚚 Pan-India Delivery
Fast shipping across all cities in India. Free delivery on select orders.
🛠️ Installation & Support
Assistance with network configuration, software setup, and system commissioning.
👨💻 Technical Support
Dedicated team for troubleshooting, firmware updates, and system expansion.
🏢 Pune-Based, Nationwide Reach
Local presence with personalized service for clients across India.
