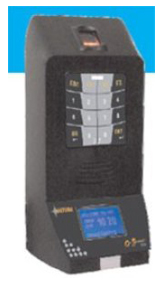

Identity verification for Attendance & Access Control application in an enterprise is made fast & easy for busy entry/exit station using Finger Print based biometric System, O-zone Bio offers economic solution for definitive & secure processing of finger print for attendance in any organisation. The data is downloaded in online / offline mode to a PC for Time Office related Reports and data required for payroll. The self directive user interface, to assist subject , O-zone Bio is a trendy ABS molded and rugged DIY (do-it-yourself) product.

Fortuna uses FVC award winning sensor which is robust & effective for extreme finger condition such as, dry & wet finger. The finger templates are ISO 19794-2 standard for interoperability.

O-zone Bio can be connected to a door lock/turnstile which is opened only on finger punching, deterring proxy and barring unwanted visitors. A Slave Reader or a Switch for Exit may also be interfaced. It is provided with a suitable termination board for easy connection & installation.

With vast experience in the field & feature-rich product, Fortuna ensures successful implementation of the system in mission critical employee centric initiative. With more then 1 million people recording attendance across Globe, our technical team has been instrumental in implementation in the most challenging sites.

FEATURES

• Push Data Technology to Server over LAN or Internet using Broad Band/GPRS(additional hardware required)
• Auto Updation of Finger Template to accommodate changes with season.
• Configurable Number of Fingers per user : 2/3/4.
• Web Server Interface for easy & self configuration
• LAN/PoE*/WiFi*/GPRS based data transfer to Server
• Logical, Unconventional design for high usability & Graphic LCD for better visibility with Name display.
• Choice of Built-in card Readers(Prox or Smart) for 1:1 matching & “Finger on card” implementation (using Smart Card).
• Individual Mode of operation, e.g. Finger only, Card only, Card +Finger etc.
• *optional

Specification / Technical Data

• CPU => High Performance 32 Bit ARM Core CPU
• Memory => 90,000 Transaction Storage (upgradable)
• Keyboard => 4X4 Membrane Keyboard
• Display => 128 X 64 Pixel Graphic Backlit LCD
• Power => Wide Range SMPS Adaptor (90-260V AC)
• Finger Print Sensor => Optical(16 X 19 mm) @500 DPI (280 X 320)
• Sensor Surface => Scratch Proof, effective for dry & wet Finger
• Algorithm => Minutiea Extraction (FVC2006 Award winning)
• Template => 6400 Template / 3200 users
• Allowable Finger rotation => + / - 90 Degrees
• Identification Time < 1 Second(Typical) for 2000 Fingers
• Slave Reader I/F => Smart/Proximity as OUT Reader
• Relay Output => 12V Wet / Potential Free Contact O/P (2 Nos)
• Pen drive Interface => upto 4GB for Transaction/Template Data
• UPS => Operational Back-up (Optional)
• Dimension => 200(H) X 110(W) X 50(D) mm
• Temperature => 0 C to 55 C
• Humidity => Upto 98% RH(Non-condensing)

Ordering Information

• O-Zone Bio : Biometric Attendance Terminal
• OPT 01 : PoE Option for Ethernet
• OPT 02 / 03 : Smart / Prox Card Reader Option
• OPT 04 : UPS & Battery with 2Hrs Backup (upgradable)
• OPT 05 : WLAN Port
• OPT 06 : Built-in GPRS Option

• MicroSMART/MicroPROX : Slave Reader for OUT
• DXS : Windows based Data Push Service for Server
• MIS Time Pro : Time Office MIS Software for Multi Shift Operation
• Door Lock : (a) Drop bolt (b) EM Lock (c) Strike
• Cable : (a) Communication (b) Lock (c) ReX Cable
• Accessories : (a) 4 port PoE Switch (b) Exit Switch (c) ID Card
