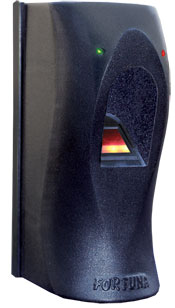

Eliminate any concerns about stolen, loaned or compromised proximity cards, the Tiny Tip leverages finger scan verification & proximity card reader technology (optional) to prevent unauthorized access.
The reader matches the finger-scan of the person seeking entry, in case of only finger(1:N) mode. Alternatively it can also be used for dual authentication in Card + Finger (1:1) mode using HID roximity Reader.
Benefits
- Self-contained unit performs Enrollment, Identification (1:N mode), Verification (1:1 mode) and stores up to 1,900 finger templates.
- User-friendly installation with pigtail connections mullion
mount compatibility
- Industry's most accurate finger-scan algorithm (No. 1 in FVC 2004 and 2006)
- Convenient Unifinger software package provides user- friendly fingerprint template enrollment and administration scapabilities
- Simple and quick enrollment of finger scans, less than 2 seconds
- Provides Identification Mode in only finger(1:N) mode. Alternatively provides dual-factor authentication : a Proximity card : something you
have, and a biometric : something you are
- Intuitive user interface with red, amber and green LED and tone
- Built-in compatibility with industry standard HID Proximity
card infrastructures (optional)
Hardware feature:
- Optical, Scratch Proof, Biometric Finger Scan Reader
- Built-in memory to store 1900 Finger Template data
- Built-in RS232C Port for Finger Template Transfer
- RS485 Interface for Multi drop network of MicroTIP for Template management
- Weigand output Port for interfacing to Checkmate Series Access Control Panel
- HID Proximity Card Reader Interface for verification in 1:1 mode (Optional)
- Relay output for Stand alone mode for Access Control with NO/NC selection
- Built-in Multi tone Buzzer for annunciation
- Bicolor LED for “Allowed” or “Denied” indication
- Built-in HID Proximity(125KHz) Reader(Optional)
- Request-to-Exit Input for Access Control Application
- May be Interfaced to Gateway 2000_Tip_Smart as Exit Reader for Access Control Application
- Built-in Temper Switch
- Single 12V DC Power Input
![](img/microtip_clip_image002_0000.jpg) |
![](img/microtip_clip_image002_0002.jpg) |
Model : MicroTIP(OPT 01) :
Stand-alone Access Control |
Model : MicroTIP(OPT 02) :
Used as a Bio-metric Reader
Node (1:N) for Checkmate
Series Access Control Panel |
![](img/microtip_clip_image002_0003.jpg) |
![](img/microtip_clip_image002_0004.jpg) |
Model : MicroTIP(OPT 03) :
Used as Exit Biometric Reader
for Gateway 2000_Tip terminal
for Intelligent single door Biometric
Access Control Application |
Model : MicroTIP(OPT 04) :
Used as Biometric Reader
Node for General purpose
application requiring 1:1
verification mode based on HID Proximity Card |
