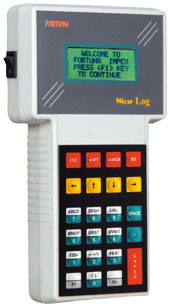

MicroLOG : Smart R/W based Hand Held Data Logger

Biometric Fingerprint Reader, NAC 2500 PLUS, biometric reader, biometric scanner

Productivity Efficiency are the forces driving companies to adopt Mobile Tools. MicroLOG, the Smart Hand Held Terminal is designed to provide cost effective Smart Card enabled solutions :- Broad Based Smart Card Management, e-Purse, Loyalty, POS, Warehousing Applications, field data collection and dynamically uplinking data with enterprise host systems.

The MicroLOG comes with a wide range of options, tailored to your need. It contains a Contact Smart Card Interface with SAM Card Socket (optional) as in Driver's License or a Mifare Contactless Reader for Read/Write applications, e-Purse, Fleet Management etc. The integration of a Biometric Scanner allows systems to conduct transactions with high levels of security using 1:1 or 1:N Biometric verification. Optional Integrated Laser Barcode Scanner provides fast and accurate capture of Barcoded data. The 16 Keys with Backlit and Jog Dial provide for quick input of data.

The Microlog delivers the data to the back end host system in real time from the field thru two Radio options (1) GPRS (2) RF 400 MHz. Of course RS232 & IRDA for offline data downloading of the captured data from its spacious memory is always there.

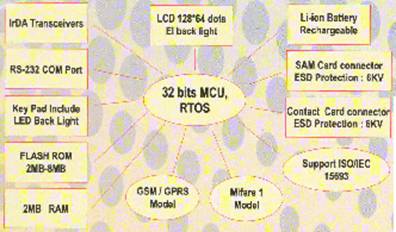

  • Microprocessor: 32-bit CPU
  • Display:132x64 dot, EL backlight, 16x8 lines, one-line icons
  • Memory:FLASH MEMORY: 16Mbit (upto 64Mbit); DRAM:16Mbit
  • Keyboard:16keys with backlight, one jog dialer
  • IC card interface: 1 standard, 1 SAM card socket (optional)
  • compatible with card accord with T=0/T=1 protocol
  • Laser Bar Code Reader : 650nm Laser(Optional)
  • Optional: Wireless/GPRS & MIFARE Smart Card Reader Interface
  • Communication interface: 1 standardRS232 interface, 1 IrDA Port
  • Battery:850mAH rechargeable Lithium battery
  • Working Temperature: -20°C-50°C
  • Relatively Humidity: 45%RH to 95%RH (non condensing)
  • Power: Average<0.5W, Max<3.5W
  • Appearance size: 154x67x30mm
  • Netweight: 170g

Applications

  • Driver Licence
  • Fleet Management
  • Mobile Payment Systems
  • Club Member / Loyalty Programs
  • Insurance Applications
  • Prepaid Card Applications
  • Warehouse Application
  • Logistics Smart Card System
  • Health Card System
  • Meter Reading Instruments
  • And many more .....
