Overview

Intelligent Vehicle Tracking System :

Monitoring and managing the mobile assets is one of the main requirements of any company dealing in services, delivery or transportation business . For optimum utilization of mobile asset it is required to collect and analyze the information of the assets.

DISHA allows you to tracks your vehicles location in an intelligent manner providing you the appropriate information at the right time . Apart from providing Real Time and Historical tracking on the WEB, it provides you real time alerts, events and scheduled reports thru SMS and email .

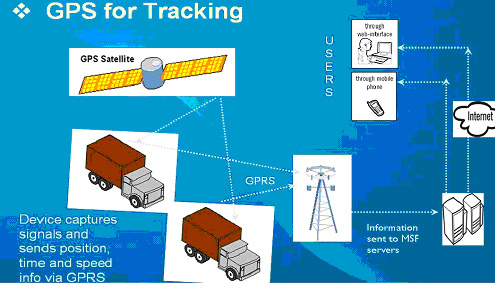

When a cellular network is available , the unit transmits the GPS data to the server along with optionally (RFID/ Finger tip , level, Temp or other device ) data to the server thru GPRS . In case the network availability is not there, data is stored in internal memory which is transmitted to the server later when network become available.The product is simple to install, just mount it on the front dashboard (GPS requires visibility of the sky ) and connect the two wires to the battery of the Vehicle . A unique feature is that the GPS & GPRS antennas are enclosed , saving in cost of installation of antennas and this also reduces the chances of mechanical damage to the antennas.

Features

Disha-9320 : Rugged GPS Tracker

• Rugged Metal Enclosure for harsh applications
• External GSM/GPRS antenna & GPS Antenna with 5 m cable
• Data Transmission in GPRS Mode with Failover to SMS Mode.
• Store & Forward of upto 6000 Position & Time data based on non availability of GPRS Network.
• Power : 10- 36 VDC ( Suitable for Car & Truck Battery)
• Unit Mounting in enclosed space ,antennas with 5 metre cable mounted with visibility to sky.
• Ignition Key ON-OFF

Optional for Disha -9320

• Battery Backup
• RS232 port for Add On Devices like RFID readers ,Fingerprint readers,
• Barcode /Magnetic Card Readers ( Drivers can be customized on Demand )
• Upto 1 No. Analog Inputs (4-20 mA) , 4 Nos. Potential Free Digital inputs , 1 No. Digital Output
• Power : 10 - 36 VDC ( Suitable for Car & Truck Battery)
• Unit Mounting in enclosed space ,antennas with 5 metre cable mounted with visibility to sky

Common Specifications :

• CPU + GPRS
• 32 bits, 104 MHz ARM processor
• 32 M bit flash / 16 Mbit Ram
• Real Time OS
• RTC with calendar
• TCP/IP on Internet
• Quad Based (850/900/1800/1900 )
• GPRS multi shot class 10, class Mhz]
• Enhanced AEC & Noise production
• Interchangeable to CDMA
• Download Over The Air capability for firmware upgrades
• Regulatory Approval : R&TTE Directories , GCF-CC, CE making FCC,
• PTCRB, China RTE manufacturing : ISOTS16949. Carrier approvals
• Temp : -20 to 55 deg C
• Fully RF shielded
• IPR Coverage : Protected against claims from holder of essentials
• GSM intellectual property right
• Single ASIC Module for CPU & GSM reducing chip count & reducing probability of failure And noise

GPS :

• Chipset - SiRF StarIII GSC3F/LP
• Frequency - L1, 1,575.42 MHz
• Channel - 20 parallel
• C/A Code - 1,023 MHz
• Fix time - Reacquisition: less than 1s - Hot start: 1s @Open sky - Warm start: 35s @Open sky - Cold start: 35s @Open sky
• Accuracy - Position: within 10m for 90% - Velocity: 0.1m/s
• TCXO - 16.369MHz DGPS - WAAS, EGNOS
• SRAM Backup Battery - 3.3mAhr Li-Ion rechargeable battery
• Battery life at full charge is 7 days
• Antenna - Built in Patch Antenna
• Altitude - 18,000 meter maximum
• Velocity - 514 meter/second maximum

Connectivity

Ordering

Disha-9310 : Compact GPS Tracker Disha-9320 : Rugged GPS Tracker with external antennas Disha-9330 : Weatherproof GPS tracker Ant-01 : GPS Receiver with 5 meter cable Ant-02 : GSM/GPRS Antenna with 5 meter cable. SER01 : Monthly Usage Charge for TrackTrace SER02 : Annual Pack Usage Charge for TrackTrace

Note : SIM with GPRS plan has to be purchased by user separately . GPRS signal essential for unit to transmit data. Visibility to sky essential for GPS to locate.
