Fingerprint Biometric Reader EnBioAccess T5
Fingerprint Biometric Reader EnBioAccess T5
Features :
- 4.3" TFT LCD, Touch Screen.
- Fingerprint Image Quality Check.
- Notice/Status bar.
- Wallpaper with company logo.
- Superior Matching Engine.
- Nitgen EnBioAccess T5 Secured 1st rank in FVC(Fingerprint Verification Competition).
- Auto-on Function & Live Finger Detection
- Nitgen EnBioAccess T5 having USB Memory Slot.
- Easy data transfer using USB memory stick.
- Multifactor Authentication.
- Fingerprint, RF card, Password.
- Any authentication methods can be used concurrently.
- Audio Acknowledgement.
- Optional WIFI Connection.
- Built-in Camera
- Takes picture for every transaction with storage in server.
- Multi Language support with Audio-visual indications.
- Built-in battery & PoE (Optional).
- Nitgen EnBioAccess T5 provides Centralized Biometric Access control on IP technology.
- Multi-processing functionality.
- Normal authentication process under progress at background of terminal.
Technical Specifications :
| ITEM | Specification |
| CPU | S3C6410 (ARM11 667MHz) |
| Memory | 256MB DRAM / 256MB Flash |
| Display | 4.3" TFT LCD / Touch Screen |
| Sensor | Optical / 500 DPI |
| 1:1 Time | < 0.2 sec. |
| 1:N Time | < 1 sec.(4,000 templates) |
| Template Capacity | 100,000 templates (2templates/1finger) |
| Log Capacity | 500,000 logs |
| Communication | TCP/IP, Wiegand In/Out(26/34bit) |
| Lock | Deadbolt, EM Lock, Door Strike, Automatic Door |
| Environment | -20~60 ℃ / < RH 90% |
| Certificate | KC, CE, FCC |
| Size (mm) | 192 x 156 x 55 (W x H x D) |
Class :
| Model Name | Authentication Media |
| SW300-S | Standard(Fingerprint, Password) |
| SW300-M | Standard, High Frequency Card (13.56MHz) - Mifare, iClass, Felica, Cepas |
| SW300-R | Standard, Low Frequency Card (125kHz) - HID, EM |
| SW301-S | PoE, Standard(Fingerprint, Password) |
| SW301-M | PoE, Standard, High Frequency Card (13.56MHz) - Mifare, iClass, Felica, Cepas |
| SW301-R | PoE, Standard, Low Frequency Card (125kHz) - HID, EM |

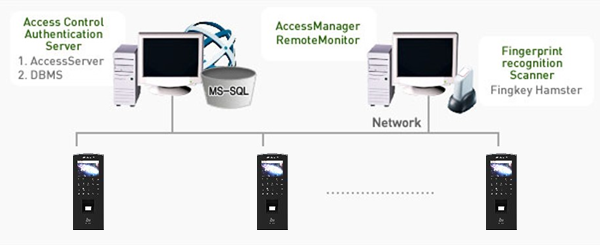

System Configuration :
| Component | AccessServer / AccessManager / DBMS |
| Max. Accessing Terminal | 2,000 EA |
| Max. Remote Client | 16 |
| OS | Windows 2000 or higher |
| Max. User | 100,000 User (in the server) |
| DBMS | MS SQLMS SQL 2000 or higher,MS SQL Express 2005 or higher |
Frequently Asked Questions – Nitgen EnBioAccess T5
What is the Nitgen EnBioAccess T5?
The Nitgen EnBioAccess T5 is an advanced fingerprint biometric access controller featuring a 4.3-inch TFT touch-screen display, a built-in camera, optional WiFi, and multifactor authentication (fingerprint, RF card, and password). It is ranked 1st in the Fingerprint Verification Competition (FVC) and supports centralized biometric access control over IP networks.
How many fingerprint templates can the EnBioAccess T5 store?
The Nitgen EnBioAccess T5 can store up to 100,000 fingerprint templates (2 templates per finger) on the device, and the server can support up to 100,000 users.
What authentication methods does the Nitgen T5 support?
The EnBioAccess T5 supports multifactor authentication using fingerprint, RF card, and password. These methods can be used individually or in combination for enhanced security requirements.
Does the Nitgen EnBioAccess T5 support WiFi?
Yes, the Nitgen EnBioAccess T5 supports an optional WiFi connection in addition to standard TCP/IP wired networking, offering greater flexibility during installation.
How fast is fingerprint matching on the EnBioAccess T5?
The EnBioAccess T5 achieves 1:1 matching in under 0.2 seconds and 1:N matching in under 1 second for a database of 4,000 templates, enabling fast, seamless access for high-traffic environments.
Does the EnBioAccess T5 have a built-in camera?
Yes, the Nitgen EnBioAccess T5 has a built-in camera that captures a photograph for every authentication transaction. These images are stored on the server for audit trails and security verification.
