Fingerprint Biometric Reader EnBioAccess T3
Fingerprint Biometric Reader EnBioAccess T3
Features :
- IP54.
- Dustproof & Waterproof.
- 2.4” TFT Color LCD.
- Fingerprint Image Quality Check.
- Notice/Status Bar.
- Wallpaper with company logo.
- Touch Keypad
- USB Memory Slot.
- Easy data transfer using USB memory stick.
- Multifactor Authentication.
- Fingerprint, RF card, Password.
- Superior Matching Engine
- T1st rank in FVC(Fingerprint Verification Competition).
- Function Key.
- User-defined functions(F1~F4).
- Clock In/Clock Out/Absence/Return.
- Multi-processing functionality.
Technical Specifications :
| ITEM | Specification |
| CPU | S3C6410 (ARM11 667MHz) |
| Memory | 256MB DRAM / 256MB Flash |
| Display | 2.4” TFT Color LCD |
| Sensor | Optical / 500 DPI |
| Authentication Type | Fingerprint, Password, RF card |
| 1:1 Time | < 0.2 sec. |
| 1:N Time | < 1 sec.(4,000 templates) |
| Template Capacity | 20,000 templates (2 templates / 1 finger, 10,000 users) |
| Log Capacity | 100,000 logs |
| Communication | TCP/IP, Wiegand In/Out (26/34 bit) |
| Lock | Deadbolt, EM Lock, Door Strike, Automatic Door |
| Environment | -20~60 ℃ / < RH 90% |
| Certificate | KC, CE, FCC |
| Dimensions | 75(W) x 182.5(H) x 39.2(D) mm |
Class :
| Model Name | Authentication Media |
| SW250-S | Standard (Fingerprint, Password) |
| SW250-M | Standard, High Frequency Card (13.56MHz)- Mifare |
| SW250-R | Standard, Low Frequency Card (125kHz)- HID, EM |

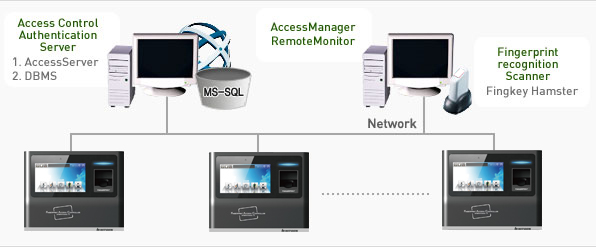

System Configuration :
Frequently Asked Questions
Q.What is Nitgen EnBioAccess T3?
T3 is an IP54 dustproof and waterproof biometric fingerprint access control reader with an ARM11 667MHz processor, 20,000 template capacity, 2.4-inch TFT colour LCD, and touch keypad for enterprise access control and time attendance.
Q.What is the 1:1 verification speed of EnBioAccess T3?
T3 completes 1:1 fingerprint verification in under 0.2 seconds — one of the fastest in its class — and 1:N identification across 4,000 templates in under 1 second.
Q.What is the template and log capacity of T3?
T3 stores 20,000 fingerprint templates (10,000 users at 2 per finger) and 100,000 event logs — suitable for large office deployments requiring extended access history.
Q.Does T3 support function keys for attendance?
Yes. T3 includes four user-defined function keys (F1–F4) for clock-in, clock-out, absence, and return — enabling shift-based time attendance recording in addition to access control.
Q.What card models are available for EnBioAccess T3?
SW250-S (fingerprint+password), SW250-M (adds Mifare 13.56MHz), and SW250-R (adds HID/EM 125kHz) — covering all major proximity and smart card formats.
